A 2D/3D mapping/scanning project consisting off:

  • robot side code
  • cross-platform visualization

Robot side code is really a bunch of super-simple programs which I call modules. Each of those programs works perfectly well from the command line without the rest of the project. The sole exception is ev3control module which enables/disables/monitors other modules. The repository for robot side code is ev3dev-mapping-modules.

The cross-platform visualization is a Unity project that can plot the readings in real-time and/or control the robot. Like other projects written in Unity it works on more than 10 platforms, in theory at least. Unity has also a nice abstraction for input so robots can be controlled with keyboards/pads/mice/wheels/mobiles and so on. The repository for cross-platform visualization is ev3dev-mapping-ui.

I try to keep the budget of the project low, around 400$ (360€) including EV3 and motors.

The meta-repository of the project is ev3dev-mapping.

This is my personal project. While I am quite happy to share the results, please keep in mind that I am pursuing my own goals here.


The 3D examples are X3D models.

You can interact with the scenes with your mouse and keyboard:

  • rotation with LMB
  • rotation point selection with double LMB
  • pan with ctrl key + LMB
  • zoom with the wheel or alt + LMB or RMB
  • reset the view with r key

Example Phase II raw scan

Example Phase II result + MeshLab surface reconstruction

Example Phase I resultExample Phase I result

The technology behind the X3D models on this page is X3DOM. See X3DOM supported browsers if you are interested.

Phase I


  1. Hardware selection
    • CruizCore XG1300L gyroscope for low bias drift and great accuracy
    • XV11 Lidar for unmatched… price
  2. Drivers
    • CruizCore XG1300L driver on top of wonderful @dlech sensor driver framework
    • XV11 Lidar in userspace using extensive information from xv11hacking
  3. Correct geometry
  4. LIDAR standard deviation
    • evaluation with respect to distance
  5. Experimental 2D mapping
    • experimental code to learn and throw away

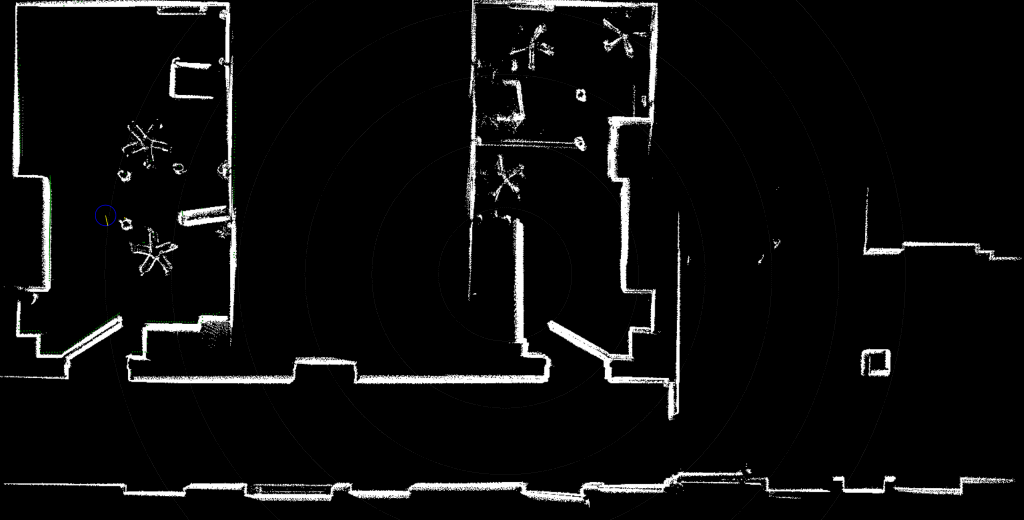

The Phase I is finished with results:

The Phase I robot in action:

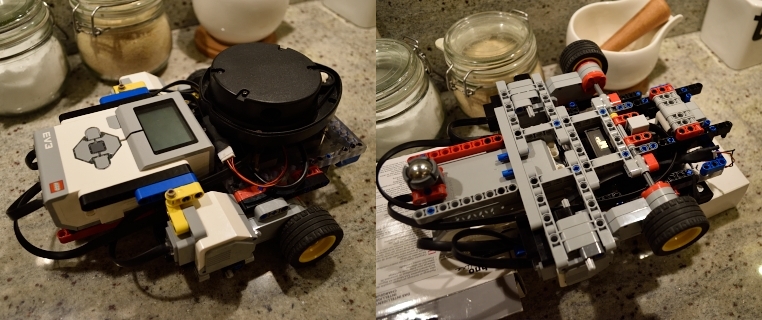

Hardware used for testing in Phase IHardware used for testing in Phase I

Phase II


  1. Cross-platform visualisation/computation/control
  2. Modular architecture design
    • modules as simple command line programs in any language
    • supervisor on top that does ‘magic’
    • UI components counterpart of modules
  3. 3D mapping with lidars in arbitrary position/rotation
    • XY and XZ plane support with any position, generalizing is easy
  4. Mapping in movement
    • precise per reading interpolation for position/heading
  5. Support for hundreds of thousands of points on average laptop
    • lidar spits around 100k points a minute!
  6. Network communication recording/replaying
    • for running same data with different algorithms/parameters added features
    • for reprocessing the data on more powerful machine if needed
    • for near-perfect path repeating
  7. Data export to widely-accepted file format
    • ply chosen for ease of implementation
  8. Multiple lidars support at the same time
    • just use multiple Laser components
  9. Multiple robots support at the same time
    • no problem but drive (keyboard, pad) scripted for single robot now
  10. Extensibility for different hardware
    • this needs writing own modules/components

Phase II is functionally finished now with results:

The Phase II robot in action:

State of the Project

Information from 10 Aug. 2016.

Phase II is functionally finished. I am tidying up the code. It will take some time:

  • ev3control & Control are rewritten for TCP/IP, UDP is working but not suitable for that
  • Unity component model is reworked from flat structure to hierarchical structure (robot with child subsystems instead of with all components)
  • common properties are moved to separate components (e.g. Network Configuration component)
  • component dependencies are reworked (e.g. Laser, LaserRenderer, LaserUI components instead of Laser with nested renderer, and ui prefabs)
  • UI needs some work but I am rather leaning towards built-in console

Phase III is in plans but I need a break now.

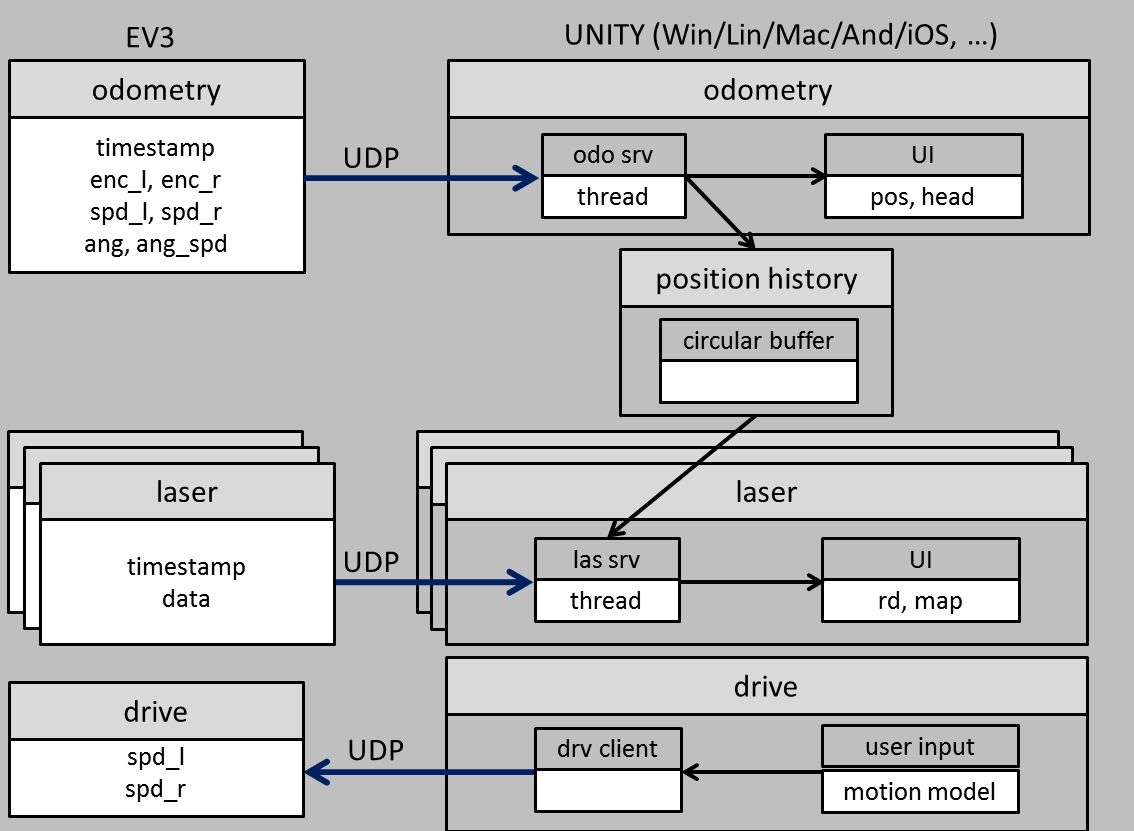

Phase II software architecturePhase II software architecture

The odometry module sends timestamped position and heading data to the odometry component. Position and heading are reflected in the UI. The data is kept in position history component in circular buffer.

The laser module sends timestamped data to the laser component. The laser component grabs position snapshots in required timeframe from the position history component. The position and heading data is interpolated individually for each laser reading. Once the data is ready it is reflected in the UI.

The drive component translates input from the user (keyboard, pad, numerical, …) using the motion model and sends it to the drive module. The drive module controls the motors.

The control component and the control module are not in the scheme for clarity. The control component sends to control module requests to enable/disable modules. The control module replies with module states.

Building Instructions

Using the XV11 Lidar tutorial has information on electrical/mechanical XV11 Lidar interfacing.

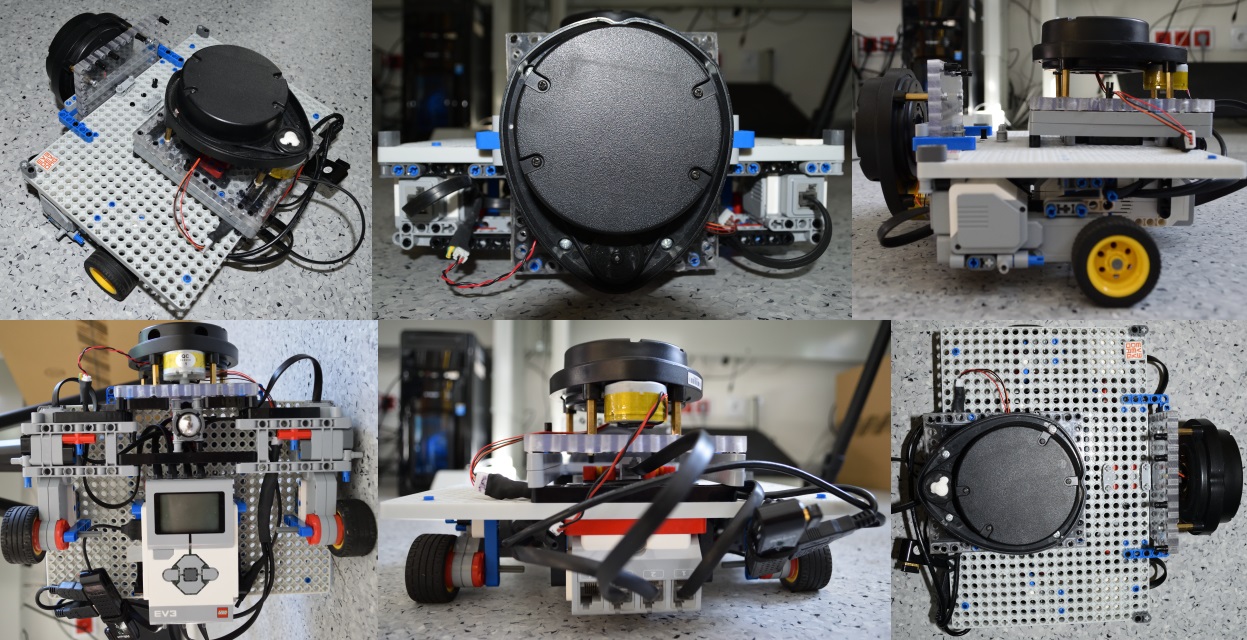

Hardware used for testing in Phase IIHardware used for testing in Phase II

Phase II key parts:

One XY-plane lidar is enough for 3D scanning. The XZ-plane lidar is for orientation and Phase III project.

Working with 3D data

MeshLab is a great UI tool for post-processing point clouds exported from ev3dev-mapping-ui. Its functionality includes normals calculation, surface reconstruction and export to U3D (for 3D pdfs), X3D (for 3D on the web) and other common 3D formats.

AOPT is a great command-line tool for optimizing X3D models for the web. It is part of InstantReality virtual/augmented reality framework. One way to share X3D content on the web is using X3DOM which is supporting implementation in ongoing Web3D and W3C discussion on declarative 3D content in html.

For example pipelines used for post-processing ev3dev-mapping-ui data see ev3dev-mapping-results.


If you have some question or problem open an issue in one of the ev3dev-mapping project repositories.
